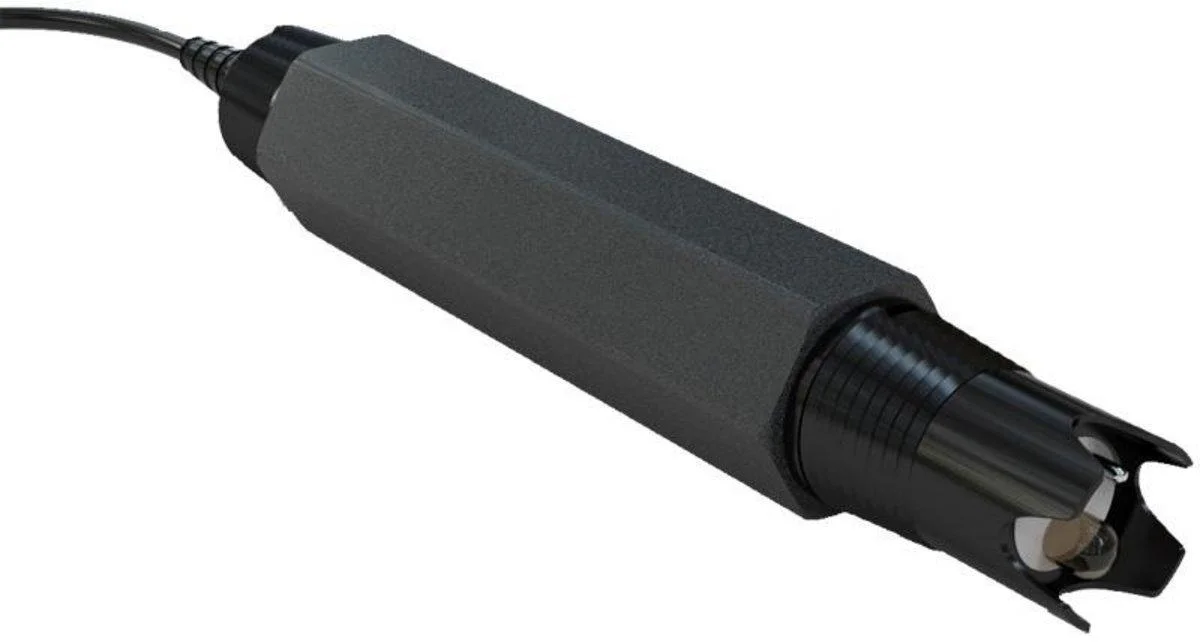

pH Sensor General Purpose
The general purpose pH sensor with ¾'' NPT front and rear threads is a rugged pH probe with Ryton body, suitable for many industrial water applications. Front and rear mounting threads allow in-pipe (continuous measurement) or submersible installations of the pH sensor. This pH sensor offers excellent chemical and shock resistance.
| Dimension Drawing | pH Range | 0 - 14 |
|---|---|---|
 |
Reponse Time | 5 seconds to 95% of full response |
| pH Sensor Type | Convertible style combination pH sensor | |
| Body Material | Ryton | |
| Reference | Double Junction with porous Teflon | |
| Mounting | Immersion or In-line | |
| Temperature Range | 0 - 80 °C | |
| Maximum Pressure | 100 psi (7 bar) | |
| Temperature Element | Pt100 RTD | |
| Temperature Compensation | Automatic | |
| Connection | Screw terminal | |
| Cable length | 6 meters | |
| Mounting threads | ¾" NPT treads, front & rear | |
| Sensor Protection | IP68 |
