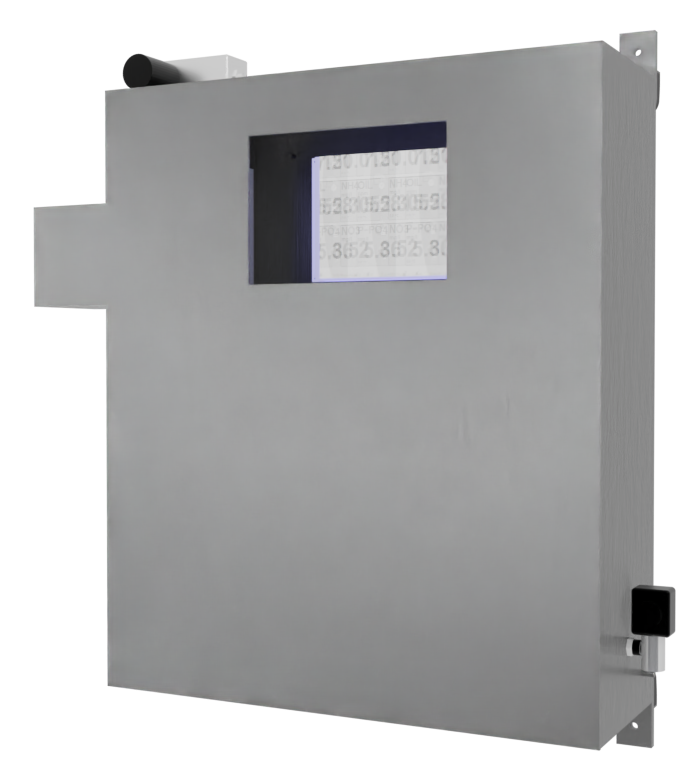

UV500 ATEX
The UV500 ATEX has a IP 65 stainless steel enclosure with an air purge system Ex pxb to work on hazardous areas classified Zone 1 where a risk of explosive atmosphere is present like refineries or chemical plants. Two alarm contacts are provided if the pressure inside the enclosure drops below the adjustable setting points. This alarm can be used to switch off the power of the enclosure. The analyser is designed to work up to 60°C of ambient temperature to avoid the use of vortex cooler.
Key Features
- Automatic cleaning with sulfuric acid 5%
- Automatic zero
- Low maintenance
- Multiparameters: Up to 16 parameters in one single unit
TECHNICAL SPECIFICATIONS
| Sample flow | Recommended : 0 - 5 L/min 0 - 0.5 L/min for NH4+ or H2S |
|---|---|
| Sample pressure | 0 – 4 Bar (0 – 1 Bar with sampling peristaltic pump) 0 - 0.5 bar for NH4+ or H2S |
| Sample temperature | 0 – 80 °C 0 - 30 °C for NH4+ or H2S |
| Operating temperature | -20 – 60 °C |
| Wet part materials | Quartz, PP, PE, FPM(viton), PMMA, Pharmed, PVC Glass for NH4+ or HS- |
| Measuring interval | Continuous or periodic: 1 min to 720 min |
| Memory | 5000 lines of measurements (up to 16 channels) with date and time |
| Chemical consumption | Cleaning solution (5% sulfuric acid) : 220 mL/day |
| Maintenance interval | Recommended: 6 months to 1 year (except for refilling) |
| Power supply | 100 - 240 VAC ± 10% / maxi 150 VA / 50 - 60 Hz |
| Touch Screen | Colour TFT LCD 640×480 pixels with LED backlight RS232 with MODBUS protocol |
| Outputs | 4–20 mA output* Relays* |
| Inputs | pH/ORP modules* 4-20 mA input* RS485 for probes |
| Free sockets | 12 free sockets for optional modules among: 4–20 mA I/O, Relays, pH, ORP, conductivity |
| EMC & Safety Standard | CE, EN61010-1, EN61326 |
| Certification | ATEX : II 2 G Ex pxb IIC T4 Gb IECEx : Ex pxb IIC T4 Gb |
| Enclosure | Stainless Steel 316L |
| Weight | 70kg |
PARAMETERS & TECHNOLOGIES
| Optical parameters | |||
| COD | UV Spectroscopy | Nitrite | Colorimetry |
|---|---|---|---|
| BOD | UV Spectroscopy | Aluminum | Colorimetry |
| TOC | UV Spectroscopy | Ortho-phosphate | Colorimetry |
| UV254 | UV Spectroscopy | Chlorine | Colorimetry |
| UV254 T | UV Spectroscopy | Iron | Colorimetry |
| Hydrocarbons (poly aromatic) | UV Fluorescence | Manganese | Colorimetry |
| Chlorophyll A | UV Fluorescence | Copper | Colorimetry |
| Oil in Water | UV Fluorescence | Silica | Colorimetry |
| Color | UV Spectroscopy | Chromium | Colorimetry |
| Nitrate | UV Spectroscopy | Turbidity | Nephelometry |
| Hydrogen Sulfide | UV Abs, Gas stripping | ||
| Ammonia | UV Abs, Gas stripping | ||
| Probes and sensors | |||
| pH | Electrochemical | ORP | Electrochemical |
| Conductivity | Electrochemical | Dissolved Oxygen | Optical |
ANALYTICAL PARAMETERS
| Parameter | Standard Range Other ranges on request |
Chemical Consumption per measurement |
Measuring Time |
Typical Repeatability FS(1) |
Detection Limit(1) Zero value |
Accuracy(1) |
|---|---|---|---|---|---|---|
| COD | 0 - 100 mg/L COD(2) 0 - 2000 mg/L COD(2) 0 - 20000 mg/L COD(3) |
- | < 5 s | ± 0,15 mg/L + ± 3 mg/L ± 30 mg/L |
0,15 mg/L 5 mg/L 30 mg/L |
2% |
| BOD | 0 - 100 mg/L BOD(2) 0 - 1000 mg/L BOD(2) 0 - 10000 mg/L BOD(3) |
- | < 5 s | ± 0,15 mg/L + ± 1,5 mg/L, ± 15 mg/L |
0,15 mg/L 1.5 mg/L 15 mg/L |
2% |
| TOC | 0 - 100 mg/L TOC(2) 0 - 1000 mg/L TOC(2) 0 - 10000 mg/L TOC(3) |
- | < 5 s | ± 0,05 mg/L + ± 1,5 mg/L, ± 15 mg/L |
0,15 mg/L 1.5 mg/L 15 mg/L |
2% |
| UV254 | 0 - 200 Abs/m 0 - 600 Abs/m 0 - 2000 Abs/m |
- | < 5 s | ± 0,30 Abs/m ± 0,50 Abs/m ± 5,00 Abs/m |
0,30 Abs/m 0,30 Abs/m 3,20 Abs/m |
2% |
| UVT | 0 - 100 % | - | < 5 s | ± 0,25 % | 0,75 % | 2% |
| Nitrate | 0 - 100 mg/L NO3 | - | < 5 s | ± 0,25 mg/L | 1 mg/L | 2% |
| Ammonia | 0 - 100 mg/L NH4+ | 2mL | 180 s | ± 1 mg/L NH4+ | 0, 15 mg/L NH4+ | 5% |
| Hydrogen Sulfide | 0 - 20 mg/L H2S | 2mL | 180 s | ± 1 mg/L H2S | 0, 2 mg/L H2S | 5% |
| Color | 0 - 100 Pt-Co 0 - 1000 Pt-Co |
- | < 5 s | ± 0,25 Pt-Co ± 3 Pt-Co |
0,8 Pt-Co 6 Pt-Co |
2% |
| PAH | 0 - 1 mg/L C6H6 0 - 10 mg/L C6H6 |
- | < 5 s | ± 0,01 mg/L C6H6 ± 0,1 mg/L C6H6 ± mg/L C6H6 |
0,1 mg/L C6H6 0,1 mg/L C6H6 - mg/L C6H6 |
2% |
| Oil in water | 0 - 10 ppm OIW 0 - 100 ppm OIW |
- | < 5 s | ± 0,1 mg/L OIW - |
1 mg/L OIW - |
2% |
| Chlorophyll A | 0 - 100 µg/L ChlA | - | < 5 s | 2 µg/L CHL A | 2% | |
| Ortho-Phosphate | 0 - 2 mg/L P-PO4 0 - 20 mg/L P-PO4 |
0,6 mL | 180 s | ± 0,04 mg/L P-PO4 | 0,01 mg/L P-PO4 | 2% |
| Nitrite | 0 - 5 mg/L NO2 | 0,6 mL | 180 s | ± 0,1 mg/L | 0.03 mg/L | 2% |
| Chlorine amperometric |
0 - 20 mg/L Cl2 | 0,6 mL | 120 s | For further information,
please contact our representative. |
||
| Nitrite | 0 - 5 mg/L Cl2 | 0,6 mL | 180 s | |||
| Aluminium III | 0 - 500 ppb Al | 0,5 mL | 120 s | |||
| Iron II | 0 - 2 mg/L Fe | 0,6 mL | 180 s | |||
| Silica | 0 - 20 mg/L SiO2 | 1,2 mL | 180 s | |||
| Chromium VI | 0 - 2 mg/L Cr VI | 0,6 mL | 180 s | |||
| Manganese II | 0 - 2 mg/L Mn 0 - 10 mg/L Mn |
0,6 mL | 180 s | |||
| Copper II | 0 - 5 mg/L Mn 0 - 200 mg/L Mn |
1,2 mL 0,6 mL |
120 s 90 s |
|||
| Turbidity TSS by correlation |
0 - 10 NTU 0 - 100 NTU 0 - 1000 NTU |
- | < 5 s | |||
| pH | 0 - 14 | - | < 5 s | ± 0,1 | 2% | |
| ORP | ± 2000 mV | - | < 5 s | ± 1 mV | 2% | |
| Dissolved Oxygen | 0 - 25 mg/L O2 | - | < 5 s | ± 0,01 mg/L | 2% | |
| Conductivity | 0 - 200 mS/cm | - | < 5 s | ± 1 µS/cm | 2% | |
| Temperature | 0 - 80 °C | - | < 5 s | ± 0,1 °C | 2% | |
(2) On river water
(3) On municipal waste water
