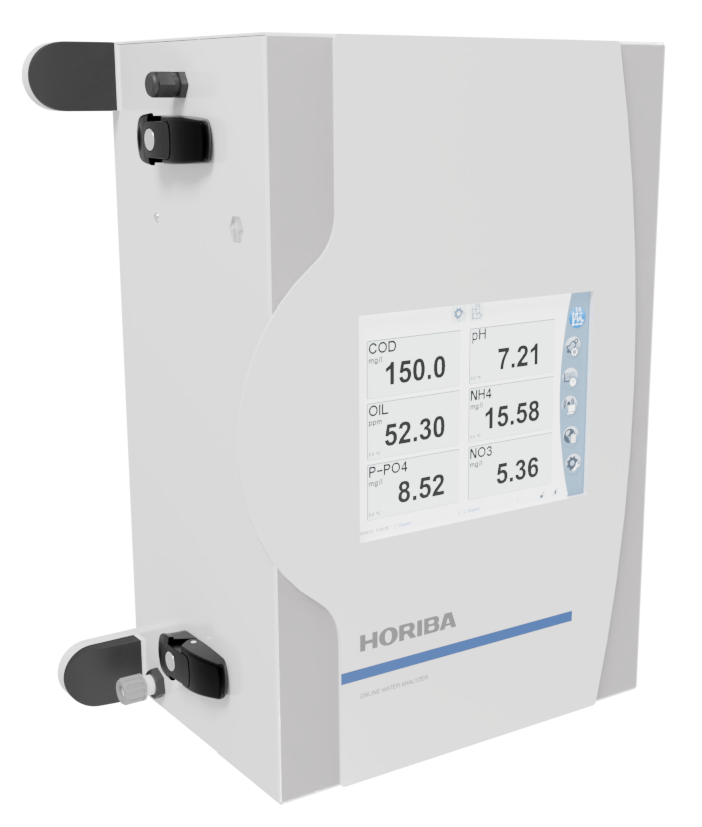

UV500
Multiparameter online water analyser
Key Features
- Automatic cleaning with sulfuric acid 5%
- Automatic zero
- Low maintenance
- Multiparameters: Up to 16 parameters in one single unit
- Multiplexing: analyse up to 6 water with one unit
TECHNICAL SPECIFICATIONS
| Sample flow | Recommended : 0 – 5 L/min 0 - 0.5 L/min for NH4 + or H2S |
|---|---|
| Sample pressure | 0 – 4 Bar (0 – 1 Bar with sampling peristaltic pump) 0 - 0.5 bar for NH4 + or H2S |
| Sample temperature | 0 – 80 °C 0 – 30 °C for NH4 + or H2S |
| Operating temperature | 0 – 60 °C |
| Wet part materials | Quartz, PP, PE, FPM(viton), PMMA, Pharmed, PVC Glass for NH4 + or H2S |
| Measuring interval | Continuous or periodic: 1 min to 720 min |
| Memory | 5000 lines of measurements (up to 16 channels) with date and time |
| Chemical consumption | Cleaning solution (5% sulfuric acid): 220 mL/day |
| Maintenance interval | Recommended: 6 months to 1 year (except for refilling) |
| Power supply | 100 - 240 VAC ± 10% / maxi 100 VA / 50 - 60 Hz 24 V DC 3A max (not available for NH4 + or H2S) |
| Touch Screen | Colour TFT LCD 640×480 pixels with LED backlight RS232 with MODBUS protocol RS485 with MODBUS protocol* |
| Outputs | 4–20 mA output* Relays* pH/ORP modules* |
| Inputs | 4–20 mA input* RS485 for probes |
| Free sockets | 12 free sockets for optional modules among: 4–20 mA I/O, Relays, pH, ORP, conductivity |
| EMC & Safety Standard | CE, EN61010-1, EN61326 |
| Enclosure | Stainless Steel 316L with epoxy coating, wall mounting bracket |
| Weight | 20 to 30 kg depending on the configuration |
PARAMETERS & TECHNOLOGIES
| Optical parameters | |||
| COD | UV254 Spectroscopy | Nitrite | Colorimetry |
|---|---|---|---|
| BOD | UV254 Spectroscopy | Ortho-phosphate | Colorimetry |
| TOC | UV254 Spectroscopy | Chlorine | Colorimetry |
| UV254 | UV Spectroscopy | Iron | Colorimetry |
| UV254 T | UV Spectroscopy | Manganese | Colorimetry |
| Hydrocarbons (poly aromatic) | UV Fluorescence | Copper | Colorimetry |
| Chlorophyll A | UV Fluorescence | Silica | Colorimetry |
| Oil in Water | UV Fluoresence | Chromium | Colorimetry |
| Color | UV Spectroscopy | Aluminium | Colorimetry |
| Nitrate | UV Spectroscopy | Hydrogen Sulfide | UV Abs, Gas stripping |
| Turbidity | Nephelometry | Ammonia | UV Abs, Gas stripping |
| Probes and sensors | |||
| pH | Electrochemical | ORP | Electrochemical |
| Conductivity | Electrochemical | Chlorine | Amperometry |
| Dissolved Oxygen | Optical | Total Suspended Solids | IR Absorbance |
| Turbidity | Nephemometry | ||
ANALYTICAL PARAMETERS
| Parameter | Standard Range Other ranges on request |
Chemical Consumption per measurement | Measuring Time |
Typical Repeatability FS(1) | Detection Limit(1) Zero value |
Accuracy(1) |
|---|---|---|---|---|---|---|
| COD | 0 - 100 mg/L COD(2) 0 - 2000 mg/L COD(2) 0 - 20000 mg/L COD(3) |
- | < 5 s | ± 0,15 mg/L + ± 3 mg/L ± 30 mg/L |
0,15 mg/L 5 mg/L 30 mg/L |
2% |
| BOD | 0 - 100 mg/L BOD(2) 0 - 1000 mg/L BOD(2) 0 - 10000 mg/L BOD(3) |
- | < 5 s | ± 0,15 mg/L + ± 1,5 mg/L, ± 15 mg/L |
0,15 mg/L 1.5 mg/L 15 mg/L |
2% |
| TOC | 0 - 100 mg/L TOC(2) 0 - 1000 mg/L TOC(2) 0 - 10000 mg/L TOC(3) |
- | < 5 s | ± 0,05 mg/L + ± 1,5 mg/L, ± 15 mg/L |
0,15 mg/L 1.5 mg/L 15 mg/L |
2% |
| UV254 | 0 - 200 Abs/m 0 - 600 Abs/m 0 - 2000 Abs/m |
- | < 5 s | ± 0,30 Abs/m ± 0,50 Abs/m ± 5,00 Abs/m |
0,30 Abs/m 0,30 Abs/m 3,20 Abs/m |
2% |
| UVT | 0 - 100 % | - | < 5 s | ± 0,25 % | 0,75 % | 2% |
| Nitrate | 0 - 100 mg/L NO3 | - | < 5 s | ± 0,25 mg/L | 1 mg/L | 2% |
| Amonia | 0 - 100 mg/L NH4 + | 2mL | 180 s | ± 1 mg/L NH4 + | 0,15 mg/L NH4 + | 5% |
| Hydrogen Sulfide | 0 - 100 mg/L H2S + | 2mL | 180 s | ± 1 mg/L H2S + | 0,2 mg/L H2S + | 5% |
| Color | 0 - 100 Pt-Co 0 - 1000 Pt-Co |
- | < 5 s | ± 0,25 Pt-Co ± 3 Pt-Co |
0,8 Pt-Co 6 Pt-Co |
2% |
| PAH | 0 - 1 mg/L C6H6 0 - 10 mg/L C6H6 |
- | < 5 s | ± 0,01 mg/L C6H6 ± 0,1 mg/L C6H6 |
0,1 mg/L C6H6 0,1 mg/L C6H6 |
2% |
| Oil in water | 0 - 100 ppm OIW 0 - 1000 ppm OIW |
- | < 5 s | ± 1 mg/L OIW - |
1 mg/L OIW - |
2% |
| Chlorophyll A | 0 - 100 µg/L Chla | - | < 5 s | 2 µg/L CHL A | 2% | |
| Ortho-Phosphate | 0 - 2 mg/L P-PO4 0 - 20 mg/L P-PO4 |
0,6 mL | 180 s | ± 0,04 mg/L P-PO4 | 0,01 mg/L P-PO4 | 2% |
| Nitrite | 0 - 5 mg/L NO2 | 0,6 mL | 180 s | ± 0,1 mg/L | 0.03 mg/L | 2% |
| Chlorine colorimetric |
0 - 5 mg/L Cl2 | 0,6 mL | 120 s | For further information,
please contact our representative. |
||
| Chlorine amperometric |
0 - 20 mg/L Cl2 | - | < 5 s | |||
| Nitrite | 0 - 5 mg/L Cl2 | 0,6 mL | 180 s | |||
| Aluminium III | 0 - 500 ppb Al | 0,5 mL | 120 s | |||
| Iron II | 0 - 2 mg/L Fe | 0,6 mL | 180 s | |||
| Silica | 0 - 20 mg/L SiO2 | 1,2 mL | 180 s | |||
| Chromium VI | 0 - 2 mg/L Cr VI | 0,6 mL | 180 s | |||
| Manganese II | 0 - 2 mg/L Mn 0 - 10 mg/L Mn |
0,6 mL | 180 s | |||
| Copper II | 0 - 5 mg/L Mn 0 - 200 mg/L Mn |
1,2 mL 0,6 mL |
120 s 90 s |
|||
| Turbidity TSS by correlation |
0 - 10 NTU 0 - 100 NTU 0 - 1000 NTU |
- | < 5 s | |||
| pH | 0 - 14 | - | < 5 s | ± 0,1 | 2% | |
| ORP | ± 2000 mV | - | < 5 s | ± 1 mV | 2% | |
| Dissolved Oxygen | 0 - 25 mg/L O2 | - | < 5 s | ± 0,01 mg/L | 2% | |
| Conductivity | 0 - 200 mS/cm | - | < 5 s | ± 1 µS/cm | 2% | |
| Turbidity | 0 - 40 NTU 0 - 400 NTU |
- | < 5 s | 1± 1 mg/L | 2% | |
| Total Suspended Solid | 0 - 1500 mg/L TSS 0 - 30000 mg/L TSS |
- | < 5 s | ± 1 mg/L | 2% | |
| Temperature | 0 - 80 °C | - | < 5 s | ± 0,1 °C | 2% | |
(2) On river water
(3) On municipal waste water
