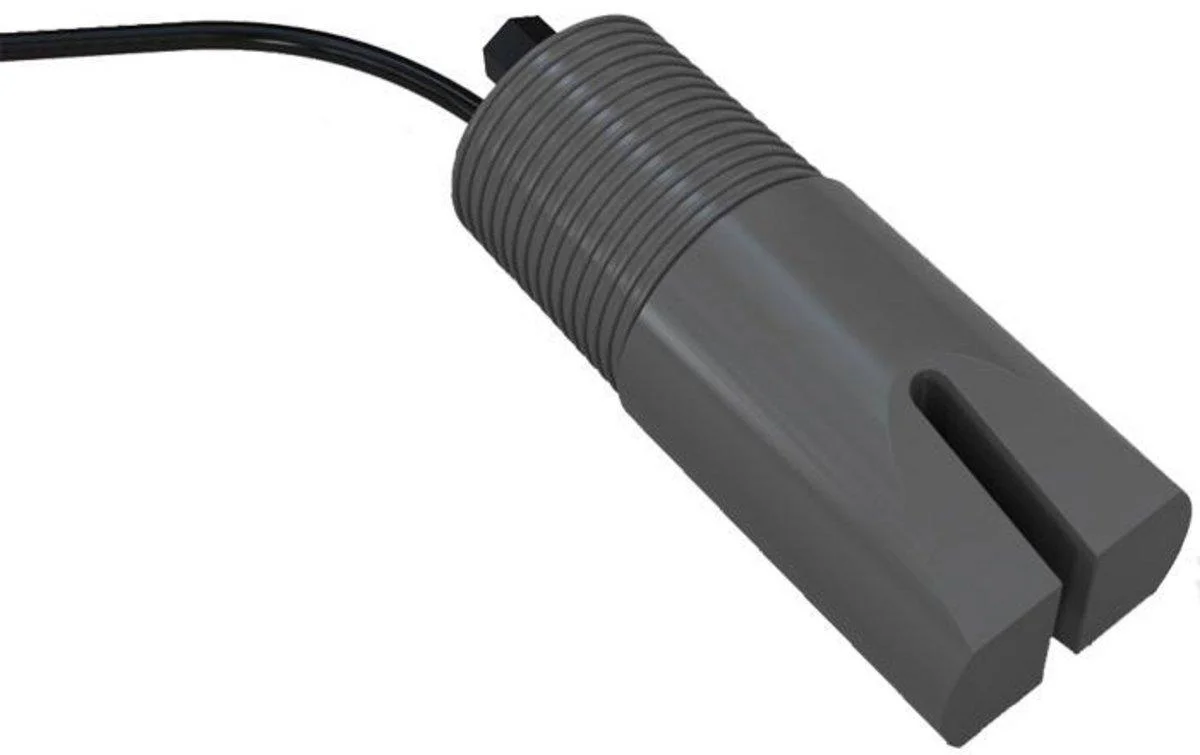

Total Suspended Solid Probe
The Total Suspended Solid (TSS) probe operates on the principle of single-gap light absorption to detect the presence of suspended solids. The sensors incorporate self cleaning optics by air or water jet. Applications include measurements of total suspended solids concentration from Mixed Liquor Suspended Solids (MLSS), Return Activated Sludge (RAS), Waste Activated Sludge (WAS), clarifier effluent and plant effluent
| Dimension Drawing | Measurement Low Range | 0 - 1 500 mg/L |
|---|---|---|
 |
Measurement High Range | 250 - 30 000 mg/L |
| Accuracy | 5 mg/L of reading | |
| Repeatability | 1% of reading | |
| Measurement Technique | IR light absorption | |
| Response Time | 95% is under 60 seconds | |
| Material | Epoxy, PU and PVC | |
| Sensor Drift | Less than 1% per year | |
| Mounting | Submersible | |
| Cleaning System | Air or water wash | |
| Working Temperature | 0 to 60 °C | |
| Mounting Thread | 1½” NPT | |
| Connection | Screw terminal | |
| Cable Lenght | 10 meters | |
| Sensor Protection | IP68 |
