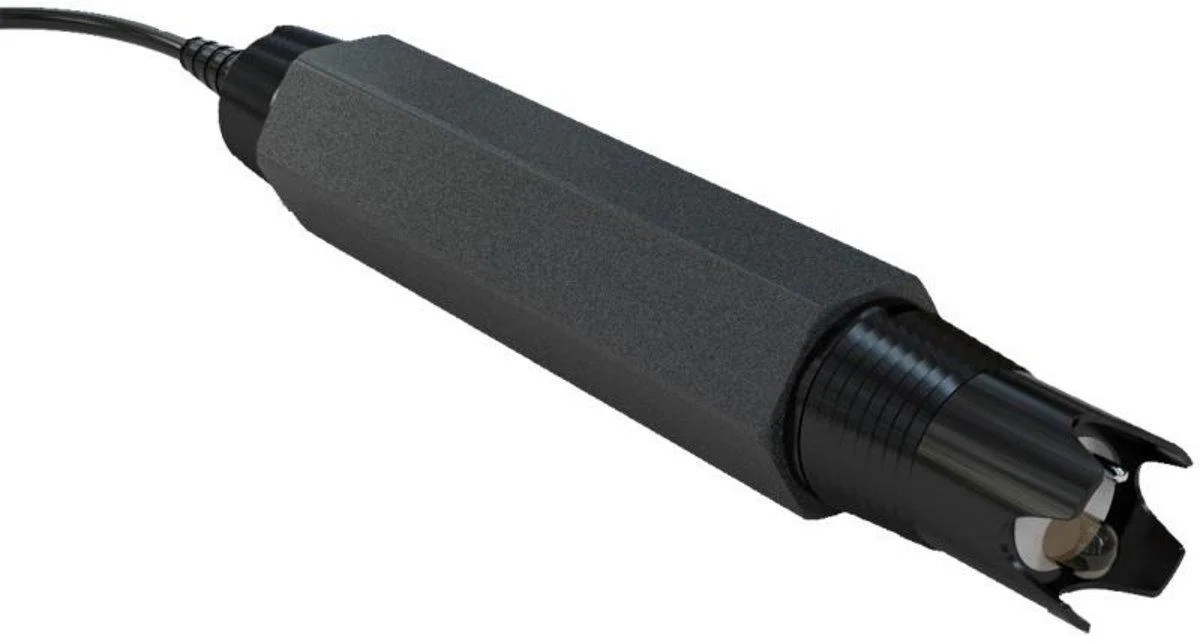

ORP Sensor
The general purpose ORP Sensor with ¾" NPT front and rear threads is a rugged ORP probe with a Ryton body suitable for many industrial water applications. Front and rear mounting threads allow in-pipe (continuous measurement) or submersible installations. This ORP sensor offers excellent chemical and impact resistance.

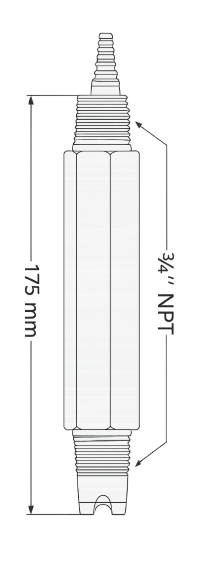

| Dimension Drawing | ORP Range | -2000 to +2000 mV |
|---|---|---|
 |
Sensor Type | Convertible style combination ORP sensor |
| Body Material | Ryton | |
| Sensing Element | Platinum | |
| Reference | Double Junction with porous Teflon | |
| Mounting | Immersion or In-line | |
| Temperature Range | 0 - 80 °C | |
| Maximum Pressure | 100 psi (7 bar) | |
| Connection | Screw terminal | |
| Cable Length | 6 meters | |
| Mounting Threads | ¾" NPT treads, front & rear | |
| Sensor Protection | IP68 |
