ORP Electrode, Gel-filled
Our gel-filled ORP electrodes are easy to use and maintain. They are able to adapt to various sample conditions.
Gel-filling technology has been improved to achieve 2 years life expectancy.(1)
Stability has been enhanced with the adoption of a special two-layer structure for the
liquid junction and water insoluble polymer gel. It minimizes the influences caused by flow-rate
during measurement, and is able to support samples with conductivity as low as 10µS/cm.
(1) Life expenctancy varies depending on factors sush as sample type, frequency of use and maintenance

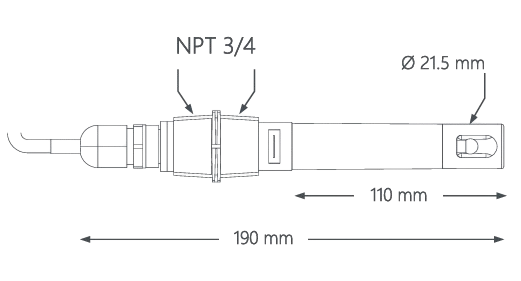

| Dimension Drawing | Electrode Structure | GRT composite electrode |
|---|---|---|
 |
Measurement Range | ± 1400 mV |
| Sample Water Temperature | -10 to 100 °C (No freezing) | |
| Sample Water Pressure | Up to 0.7 MPa (under 40 °C) | |
| Sample Water Conductivity | 10 µS/cm or more, flow rate needs to be lower than 0.05 m/s | |
| Liquid Junction Structure | Double liquid junction structure | |
| Comparative Electrode Internal Liquid | Water-insoluble polymer gel, KCl supersaturated | |
| Wetted Materials | Glass, PVDF, FKM, PE | |
| Cable Length | 5 / 10 / 15 / 20 meters |
