Low Conductivity sensors - ESH series

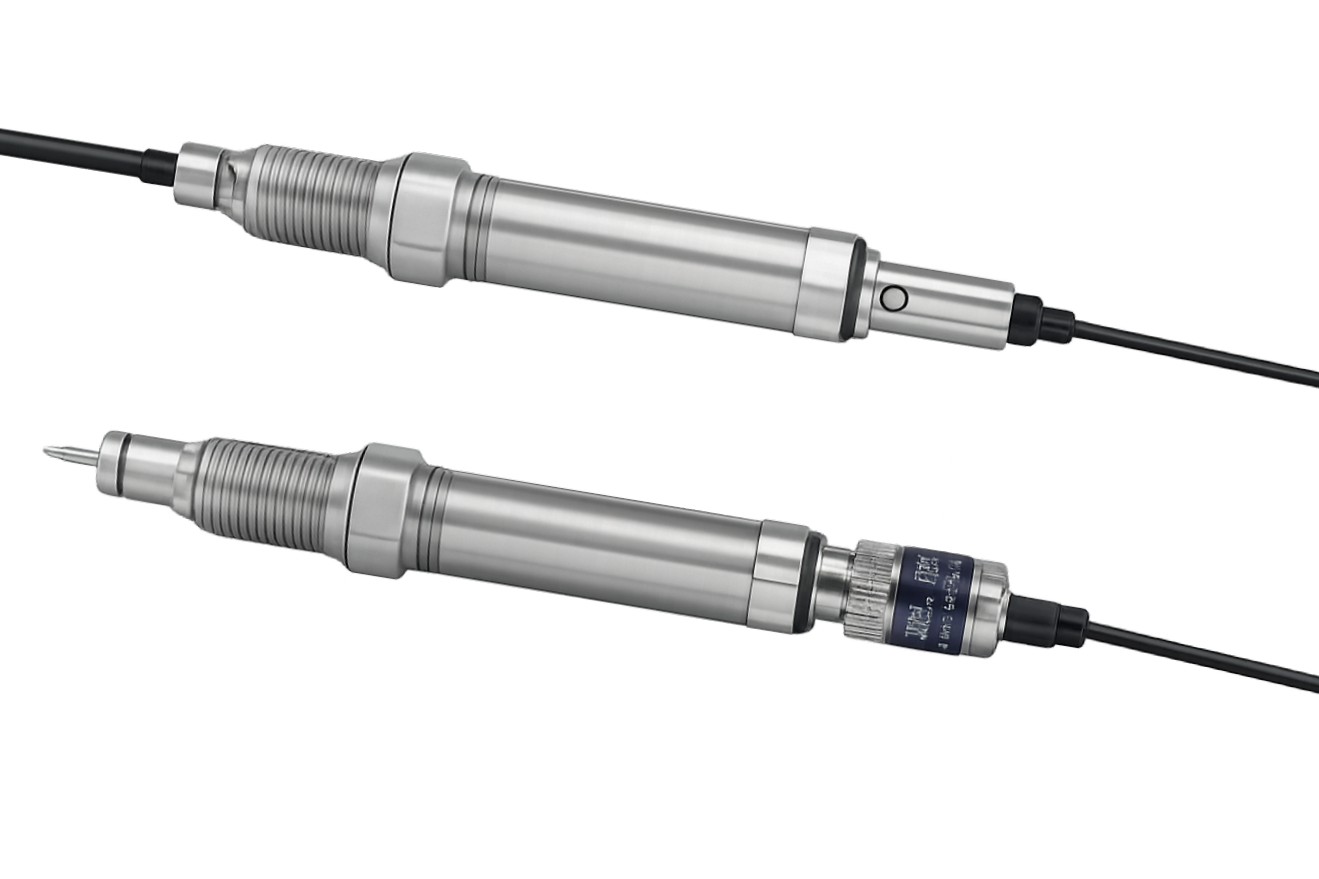

These general-purpose electroconductivity sensors are useful for controlling pure water and boiler water and for monitoring wastewater treatment. Two types are available: a lead type in which the cable and the sensor are integrated, and a connector type in which the cable can be removed from the sensor.

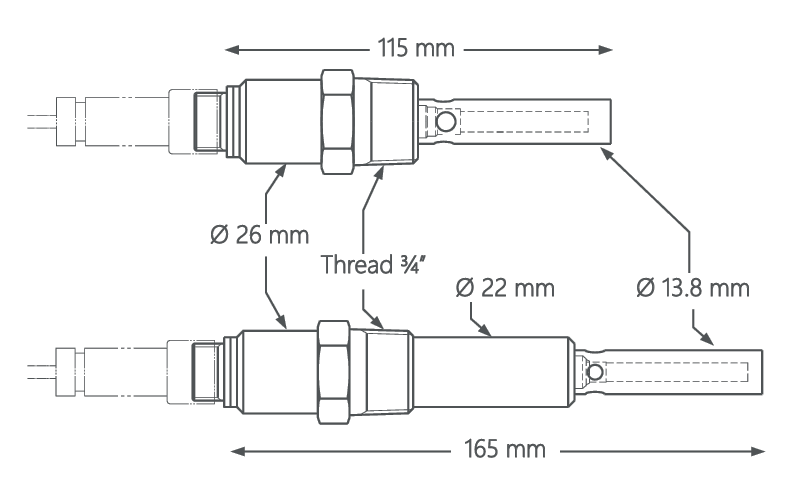

| Dimension Drawing | Body Material | SS 316 |
|---|---|---|
 |
Electrode material | SS 316(1) |
| Conductivity Range | ESH-001: 0.00 to 20.00 µS/cm ESH-01: 0.0 to 200.0 µS/cm ESH-1: 0 to 2000 µS/cm |
|
| Repeatability | Within ±0.5% of the full scale (response for equivalent input) Within ±5% of the full scale in the range of 2000 µS/cm |
|
| Linearity | Within ±0.5% of the full scale (response for equivalent input) Within ±5% of the full scale in the range of 2000 µS/cm |
|
| Cable length | 10 m | |
| Note | (1)Titanium electrode available on demand |
