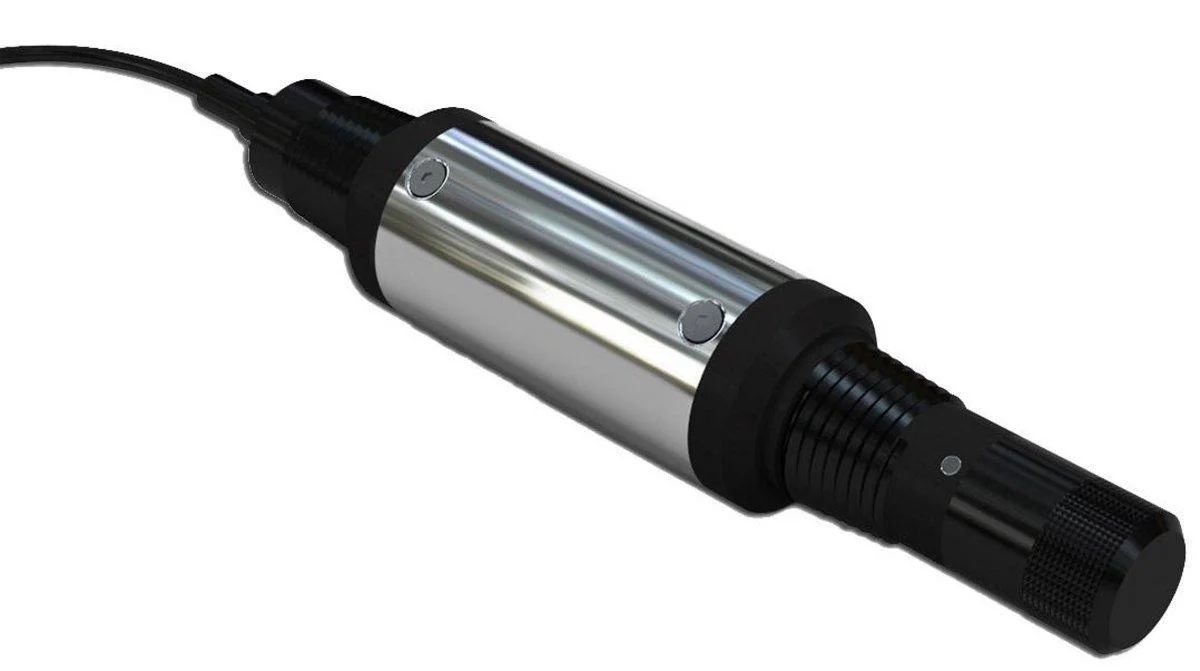

Dissolved Oxygen Probe
The process optical DO probe is based on proven luminescent optical technology suitable for most industrial applications. It offers full performance, replaceable sensor caps and long life. Front and rear mounting threads allow for in-pie (continuous measurement) or submersible. The optical DO probe is suitable for measuring dissolved oxygen in various water and wastewater applications.
| Dimension Drawing | Measuring Range | 0 - 20 mg/L |
|---|---|---|
 |
Accuracy | ± 0.1 mg/L |
| Working Temperature Range | 0 to 50 °C | |
| Measurement Technique | Luminescent Optical Technology | |
| Sensor Cap | Replaceable, Pre-calibrated | |
| Body Material | Stainless Steel 316 body | |
| Maximum Pressure | 100 psi (7 bar) | |
| Maximum Temperature | 80 °C | |
| Temperature Compensation | In-built, Automatic | |
| Mounting | Immersion or In-line | |
| Connection | Screw terminal | |
| Cable Length | 6 meters | |
| Mounting Threads | 1" NPT threads, front & rear | |
| Sensor Protection | IP68 |
