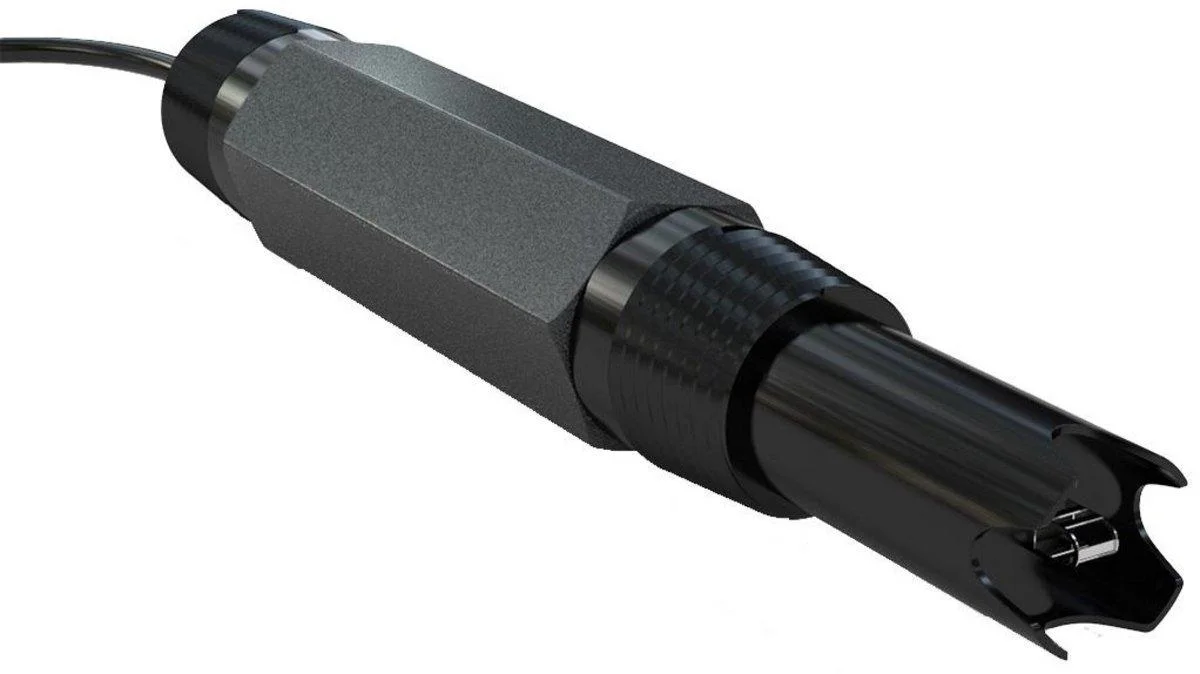

Conductivity Sensor, General purpose
The conductivity sensor with ¾ NPT thread is a robust probe with a polypropylene body suitable for many industrial water applications. The mounting thread allows in pipe (flow-through) installations of the conductivity sensor. This conductivity sensor offers excellent chemical and impact resistance.

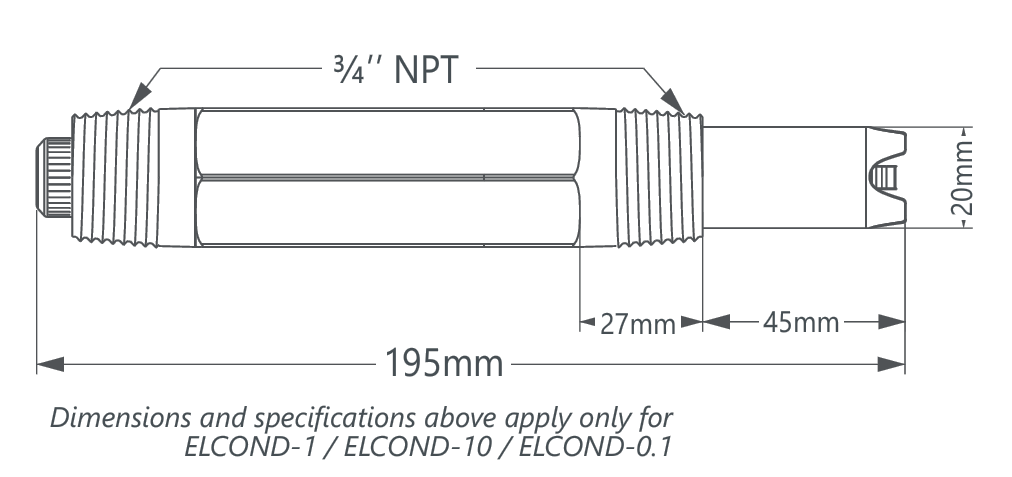

| Dimension Drawing | Body Material | Polypropylene |
|---|---|---|
 |
Mounting | In-line (flow-through) |
| Temperature Range | 0 - 80 °C | |
| Maximum Operating Pressure | 100 psi (7 bar) | |
| Temperature Element | Pt100 RTD | |
| Temperature Compensation | Automatic | |
| Mounting Thread | ¾" NPT threads | |
| Connection | Screw terminal | |
| Cable Length | 6 meters | |
| Sensor Protection | IP68 |
