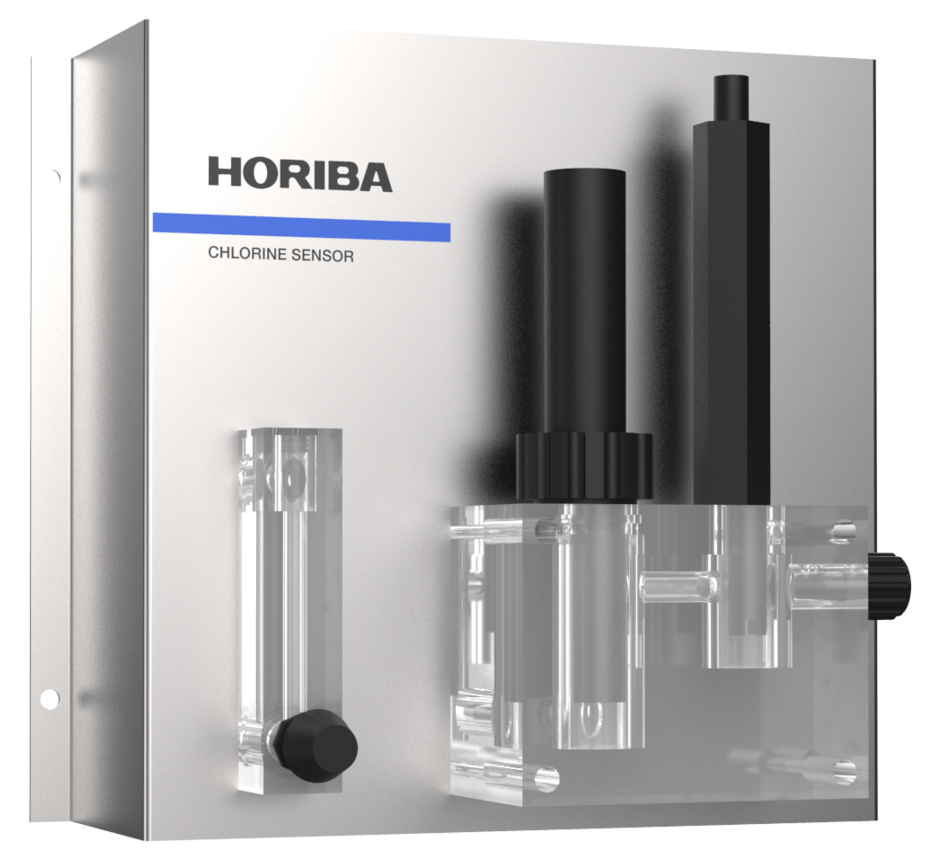

Chlorine Sensor
The chlorine sensor is based on proven amperometric measurement technology. It is factory calibrated on standard solution. Its long-lasting membrane cap is replaceable with a refillable gel electrolyte. It is suitable for the measurement of residual chlorine (free or total) in various industrial water and wastewater applications.
| Dimension Drawing | Measurement Range | 0 - 20 mg/L |
|---|---|---|
 |
Accuracy | ± 0.1 mg/L |
| Repeatability | ± 0.1 mg/L on standard solution (25 °C) | |
| Measurement Technique | Membrane-covered, three electrode amperometric technology | |
| Reproducibility | ± 4% | |
| Response Time | 90 second to 90% (t90), 25 °C | |
| Operating Temperature | 0 to 50 °C | |
| Operating Pressure | 15 psi (1 bar) | |
| Operating pH | 4 - 12, automatic pH compensation | |
| Flow Requirement | 30 to 60 L/h | |
| Material | Body Housing: PVC, ABS Membrane: Hydrophilic PTFE Electrode: Silver-Silver Halide/Gold/316SS |
|
| Temperature Compensation | In-built, Automatic | |
| Connection | Screw terminal | |
| Cable Length | 1 meter | |
| Sensor Protection | IP65 |
