Ammonia Probe

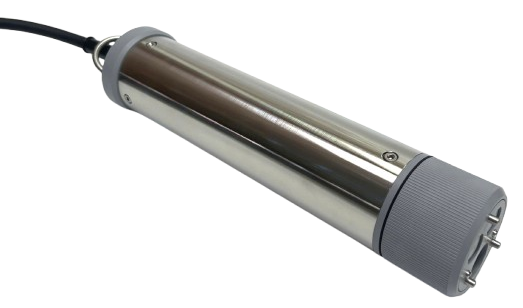

AM-2000 is an ammonia probe using ion selective electrode method which is designed for aeration control in wastewater treatment.
The advanced intelligence of this system is highlighted by its sample adjustment function and automatic potassium ion concentration compensation,
ensuring precise and reliable measurements. Designed for easy maintenance, it features a replaceable chip that can be
swapped without the need for tools, and when combined with a new-type ultrasonic cleaner, it
significantly enhances antifouling properties. The flat sensor surface is engineered to prevent bubble and stain
accumulation, eliminating the need for measurement reagents. Built to be tough, the ion sensor facilitates long-term
stable measurement, supported by a new ion chip internal solution that ensures measurement stability. Additionally,
the new structure of the reference chip further achieves stable measurement performance.

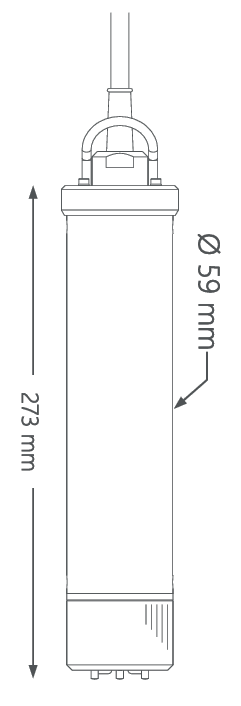

| Dimension Drawing | Electrode type | ISE (Ion Selective Electrode) |
|---|---|---|
 |
Measuring range | NH₄-N: 0 - 1000 mg/L |
| Sample Temperature Range | 0 - 40°C (no freezing) | |
| Repeatability | ±3% (Reading) or ±0.2 mg/L; whichever is greater (Standard solution) | |
| Potassium ion compensation | Compensation range: Potassium ion concentration is not more than
10 times the ammonium ion concentration and under 1000mg/L Compensation error: ±20% (measured value) |
|
| Material | SUS316, FKM, PVC | |
| Weight | Approx. 2.7 kg (including 10 m cable) | |
| Cable Lenght | 10 m |
